PV Module
|
GSM370-72
|
GSM380-72
|
GSM385-72
|
GSM390-72
|
Rated Maximum Power(Pmax) [W]
|
370
|
380
|
385
|
390
|
Open Circuit Voltage(Voc) [V]
|
45.8
|
46.3
|
46.5
|
46.7
|
Maximum Power Voltage(Vmp) [V]
|
36.7
|
37.4
|
37.7
|
38.0
|
Short Circuit Current(Isc) [A]
|
10.76
|
10.83
|
10.87
|
10.91
|
Maximum Power Current(Imp) [A]
|
10.13
|
10.24
|
10.3
|
10.36
|
Module Efficiency [%]
|
18.9
|
19.4
|
19.7
|
19.9
|
Power Tolerance
|
0~+5W
|
Temperature Coefficient of Isc(α_Isc)
|
+0.058%/℃
|
Temperature Coefficient of Voc(β_Voc)
|
-0.330%/℃
|
Temperature Coefficient of Pmax(γ_Pmp)
|
-0.400%/℃
|
STC
|
Irradiance 1000W/m²,ᅠcell temperature 25℃, AM1.5G
|

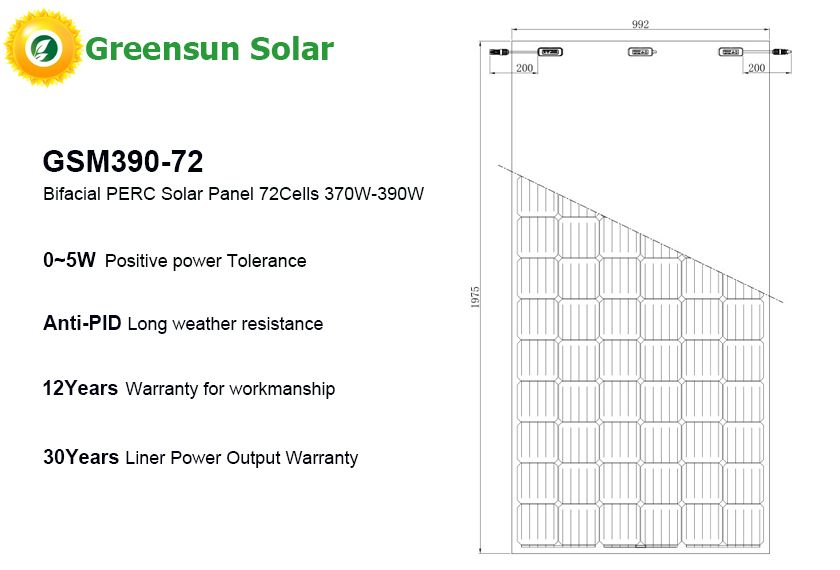

Size
|
1975*992*40/6mm
|
Weight
|
27.5kg
|
Package for double perc glass solar panel
30 units Bifacial PERC Double solar modules per pallet
22pallets solar panels in a 40`ft container
Customization Package is Feasibility
Projects made by greensun solar

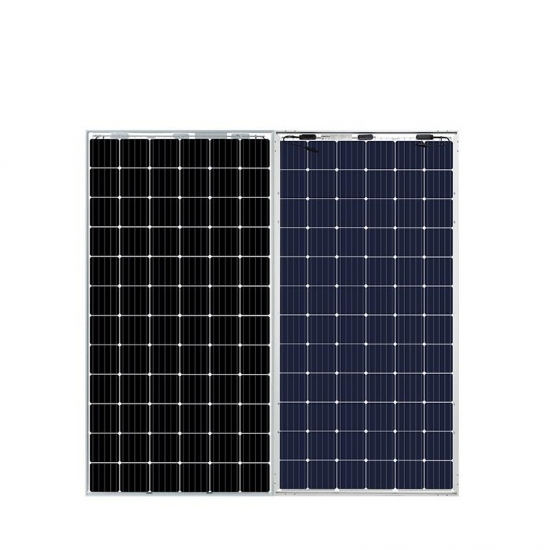

Bifacial Power
In contrast to conventional modules, BIFACIAL PERC modules generate energy from both sides.
As the backside makes use of the reflected and scattered light from the surroundings, the modules can yield up to 30%
power more, depending on the albedo.
High Yield
Once used, BIFACIAL PERC modules generate more energy, because of low LID, good low-light performance and temperature coefficient of N-type monocrystalline silicon solar cells.
Durability
Durable BIFACIAL PERC modules work well in muggy conditions, and in-dependently tested for harsh environmental conditions beyond IEC stan-dards, such as exposure to salt mist, ammonia or known PID risk factors.
Optimal Self-cleaning
Optimal self-cleaning due to frameless module design.
