Greensun Solar powerwall is an integrated lithium ion battery pack. It is very safe with adopting lithium iron phosphate battery technology. Powerwall battery system is widely used in home energy storage system(HESS) such as solar energy system, wind energy system, ups and also EPS, telecom.
SUN-29.9/30/35K-SG01HP3-EU-BM3 SUN-40/50K-SG01HP3-EU-BM4 DEYE Hybrid Solar Inverter 29.9KW, 30KW, 35KW, 40KW, 50KW in Stock
Greensun Rack Mount Lithium Ion Battery Parallel Connection Support Capacity from 100KWH to 1MWH 10-15 Years warranty. 20 Years Design Life Also offer complete solar systems solution for home and commercial use.
N-Type HJT Solar Panels 700W - 730W Monocrystalline High Efficiency
Greensun One-Stop Solutions of Residential Energy Storage System for Europe and America 1. Peak Shaving 2. Backup 3. Off Grid 4. Demand charging 5. Hybrid Solar System 6. Backup
Full Balck Half Cells Monocrystalline solar panel 210*210mm cells, 12BB 400w 405 410w 415w 420w mono solar panel
On Off grid Inverter 5KW 7.6KW 8KW 120V/240V Split Phase Inverter 12KW Hybrid Solar Inverter For Energy Storage System
ALL IN ONE Hybrid ESS OUTDOOR CABINET
50KWH 100KWH 200KWH 300KWH...1MWH LFP Battery
Hybrid Inverter 30KW 50KW 60KW 80KW 100KW and so on.
Outdoor Container Cabinet Solution
Brand:
GREENSUN OR OEM SERVICEItem NO.:
ALL IN ON ESS OUTDOOProduct Origin:
CHINAColor:
METALShipping Port:
shenzhen, shanghaiPower Ranger:
50KWH -1000KWHType:
Container Lithium battery SolutionMax Power :
1000KWHMaintenance Type:
FreeCycle Life:
20YearsCertification:
IEC, TUV, UL,CELead Time:
35 DaysWarranty:
10YearsGreensun ALL IN ONE Hybrid ESS 50KWH 100KWH 200KWH 300KWH with Hybrid Inverter

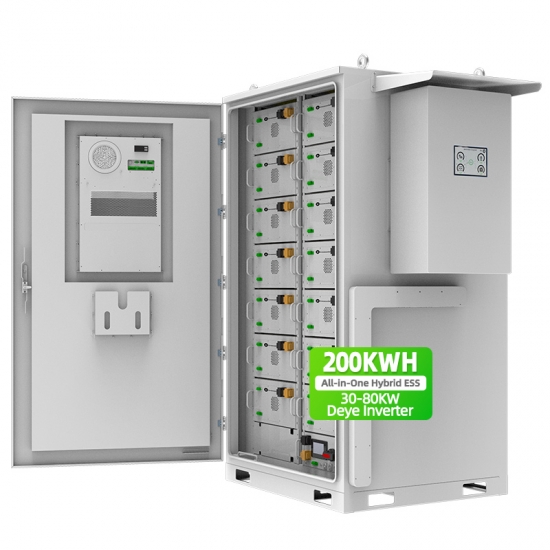

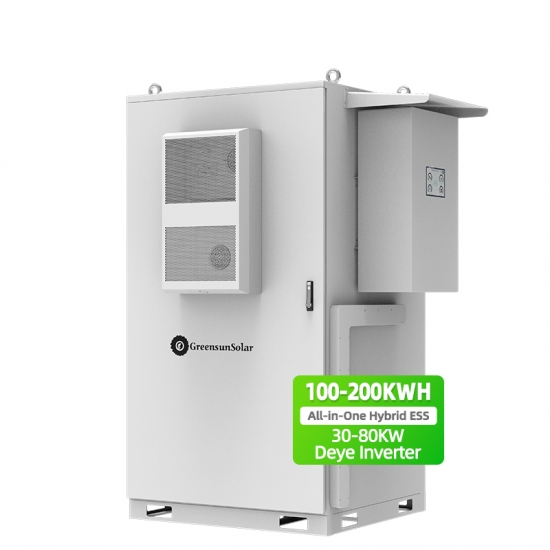

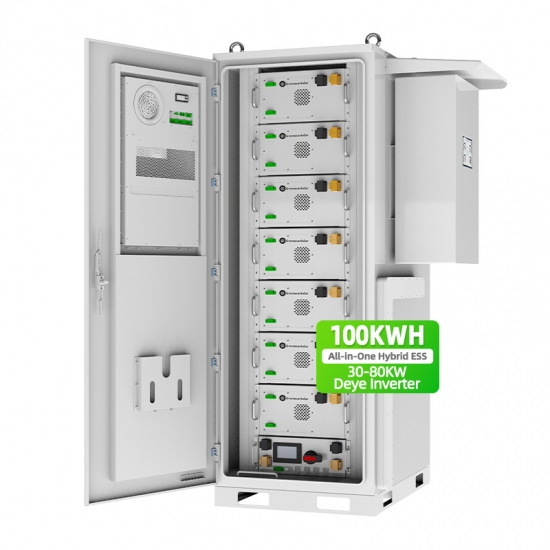

All in One Hybrid ESS with Outdoor Cabinet
Greensun can provide commercial and industrial application with a complete solution of outdoor integrated PV& battery energy storage system.
It can be widely used in many scenarios such as charging stations, factories, industrial parks, and commercial buildings.
*100V-1000V wide voltage
*30-500KW Hybrid Inverters or PCS
Specifications of ESS
OUTDOOR CABINET Battery Energy Storage System
Model
ESS-100KWH
ESS-200KWH
Parameter-BATTERY (DC)
Rated Voltage (V)
358.4
716.8
Voltage range (V)
313.6-403.2
627.2-806.4
Rated Capacity (Ah)
280Ah
Rated Energy (kWh)
100.3kWh
200.7kWh
Cycle Life
≥6500 Times
AC(on -grid)
Recommend Input Power
50KW
100KW
Rated Voltage
380V/400V
Output
3W+N+PE
Rated frequency
50/60Hz
AC(off -grid)
Rated Power
50Kw
80Kw
Rated Current
43A
121.3/115.9A
Rated Voltage
380V / 400V/ 440V/480V
Size / Installment
Approx Dimension(W*D*H) mm
1680*1500*1700mm
1680*2270*1700mm
Approx Weight
1100kg
2300kg
Max. Conversionefficiency
95%
Max.imum Altitude
4000m(derate over 2000m)
Cooling Forced-air
Intelligent fan adjustment
Display Touch Screen
LCD(Optional)
For detailed requirements, please contact us to provide customized solutions

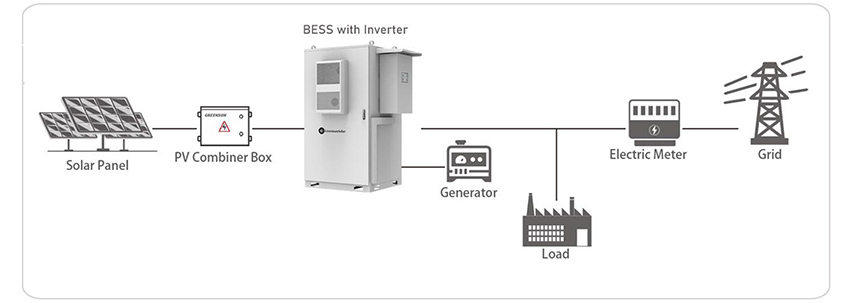

Senarios of Solar Energy Storage System

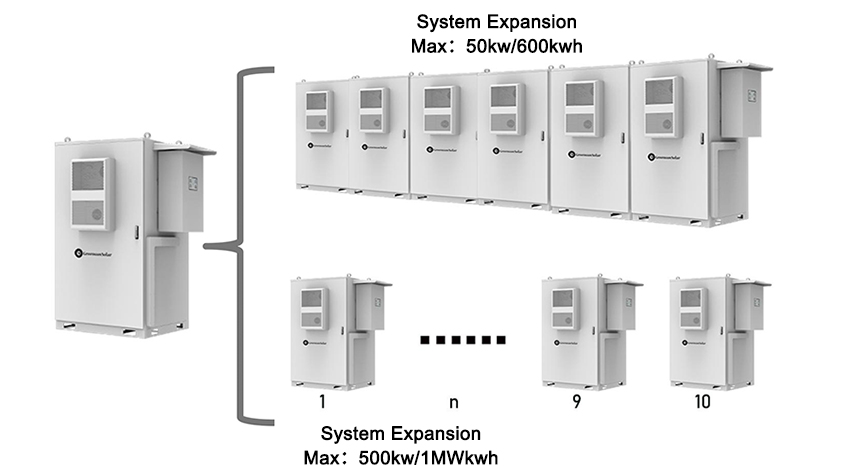

Easy to expand:
International Standard Package

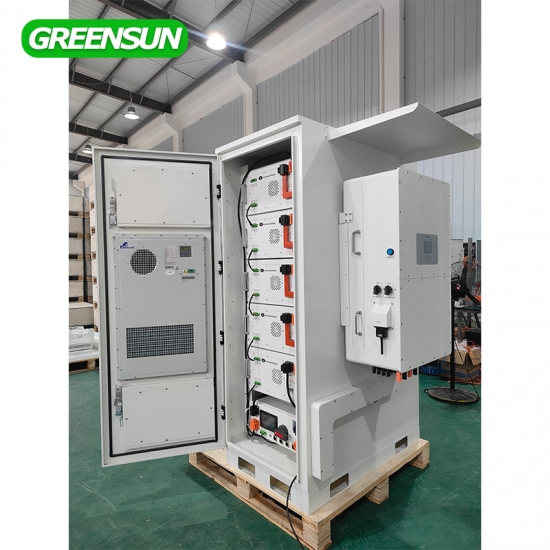

Greensun Lithium Ion Battery Projects for Reference
If you have any demand for lithium battery products, please contact us in time.
E-mail: info@greensunpv.com
Whatsapp: +86 158 5511 0194
Greensun Solar Energy Tech. Co., Limited
Greensun Head office
Add: Building 8, Phase 1, E-commerce Industrial Park, Shushan District, Hefei City, Anhui Province
Tel: +86-158-5511-0194
Whatsapp: + 86 187 1510 8506
Fax: +86-551-6880 6668
Email: manager@greensunpv.com
96V 50AH 100AH 200AH Lithium Battery Cabinet High Voltage Lithium Ion Battery Pack
96V 50AH 100AH 200AH Lithium Battery Cabinet High Voltage Lithium Ion Battery Pack
192V 100AH 200AH 300AH Lithium Ion Battery High Voltage Lifepo4 Battery Pack 50AH 500AH
192V 100AH 200AH 300AH Lithium Ion Battery High Voltage Lifepo4 Battery Pack 50AH 500AH
360V 100AH 200AH 400AH 60AH 1000AH Lithium Ion Battery High Voltage Lifepo4 Battery Pack
360V 100AH 200AH 400AH 60AH 1000AH Lithium Ion Battery High Voltage Lifepo4 Battery Pack
96V 10KW 20KW 30KW 50KW Lithium Ion Battery Cabinet 50KWH Lifepo4 Storage Batteries
96V 50AH 100AH 200AH Lithium Battery Cabinet High Voltage Lithium Ion Battery Pack
96V 192V 240V 360V 384V Lithium Ion Battery Solution 100AH 150AH 200AH 300AH 400AH 500AH with Cabinet
96v 192V 240v 360v 384v 100AH 200AH 300AH 500ah Lithium Ion Battery High Voltage Lifepo4 Battery with cabinet solution 12 years warranty, more than 20 years lifetime UL CE MSDS certificates
Home Storage Lithium Ion Battery 48V 400AH 600AH 800AH Residential Solar System 20KWH
48V 96V Integrated design lithium ion battery cabinet, one-stop solution solar energy storage system 20KWH, 40KWH, 60KWH, 80KWH,,,,etc
Large Lithium Ion Battery Container 300KWH 500KWH 800KWH 1MWH Storage Power Solution
Large-scale lithium battery energy storage systems, such as 500kwh, 1mwh, 2mwh, etc., usually store power when the power is surplus, and output the stored power to the grid through the inverter when the power is insufficient. When the power grid is out of power, the lithium battery energy storage system can act as an independent inverter power supply to provide AC power to important loads, thereby ensuring the needs of users. In areas with high electricity costs, it is also possible to build a large energy storage system solely to sell electricity. One stop solution service, free design. 12 years warranty, more than 20 years lifetime UL CE MSDS certificates
256V 360V 512V 720V 36KWH 50KWH 200KWH high voltage lithium battery energy storage system with rack
256V 360V 512V 720V 36KWH 50KWH 200KWH high voltage lithium battery energy storage system with rack
Greensun solar can provide customized solar system solutions,including grid-tie, off-grid and hybrid storage solar energy systems.
