Energy Storage Battery 30KW 50KW 100KW Lithium Battery Power System 50KWH 100KWH 200KWH

ALL IN ONE ESS OUTDOOR CABINET

50KWH 100KWH 200KWH LFP Battery

Outdoor Container Cabinet Solution

Brand:
GREENSUN OR OEM SERVICE
Item NO.:
ALL IN ON ESS OUTDOO
Product Origin:
CHINA
Color:
METAL
Shipping Port:
shenzhen, shanghai
Type:
Rack Mount Lithium battery
Max Power :
1000KWH
Maintenance Type:
Free
Cycle Life:
20Years
Certification:
IEC, TUV, UL,CE
Lead Time:
15 Days
Warranty:
10 Years

contact now

Product Details

Energy Storage Battery 30KW 50KW 100KW Lithium Battery Power System 50KWH 100KWH 200KWH

Commercial Energy Storage Systems 50KWH/100KWH/200KWH

Outdoor Cabinet ESS for micro-grid island, hotel, farm...Applications

high voltage lithium ion battery system

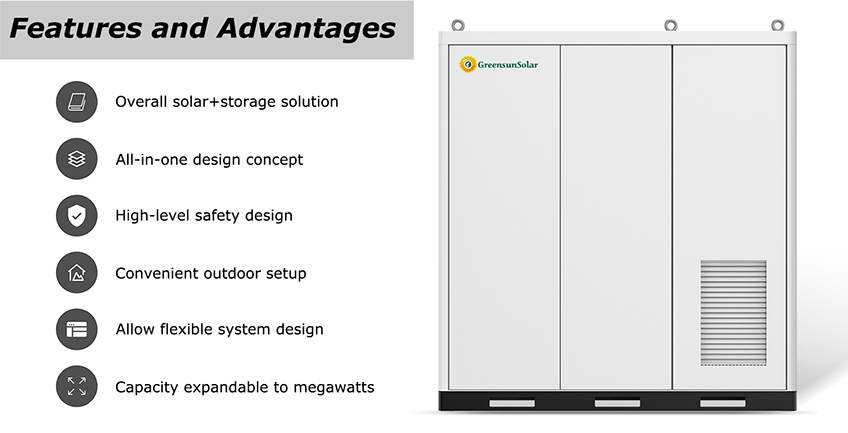

All in One ESS with Outdoor Cabinet

Greensun can provide industrial and commercial users with a complete solution of outdoor integrated PV& energy storage system.

It can be widely used in scenarios such as charging stations, factories, industrial parks, and commercial buildings.

*100V-1000V wide voltage

*30KWH-500KWH wide Capacity

*Easy installation with modular design

*IEC/ CE /CEC/ UN38.3/ UL/ MSDS Certificates

*Compatible with all brands PCS or Hybrid Inverters

Specifications of ESS

MODEL	ESS 51.2-30KW	ESS 100.3-50KW	ESS 200.7-100KW
Battery Data
Battery Module	51.2V 200AH / 280AH LiFePO4 Battery
Numbers of Modules	5	7	14
Energy Capacity	51.2KWH	100KWH	200KWH
Norminal Voltage	256V	360V	716V
Voltage Range	223-278V	313.6-392V	627.2-806.4V
Max Charge Current	100A
Max Discharge Current	100A
AC Data (ON GRID)
Rated AC Power	30KW	50KW	100KW
Rated AC Output Voltage	400Vac	400Vac	400Vac
Rated AC Output Frequency (Hz)	50/60Hz	50/60Hz	50/60Hz
AC Output Rated Current	75.8/72.5A	144A
AC PF	0.8lagging~0.8leading
THDI	＜3%	＜3%	＜3%
AC Data (OFF GRID)
Rated AC Power	30KW	50KW	100KW
Rated AC Output Voltage	400Vac	400Vac	400Vac
Rated AC Output Frequency (Hz)	50/60HZ	50/60HZ	50/60HZ
AC Output Rated Current	75.8/72.5A	144A
THDU	<3% (of nominal power)	1% linear; ors5% nonlinear
Overload Capacity	1.5 time of rated power, 10s	110% long-term
PV Input Data
Max.PV Input Voltage	1000V	1000V	1000V
Max.PV Input Power	45KW	65KW	120KW
MPPT Voltage Range	150-850V	150-850V	250-850V
System Specification
Air Conditioner Power	3KW
Operation Temperature	-20°C~ 50°C
Operation Humidity	0~95%(NO CONDENSING)
Protection Level	IP55
Anti-Corrosion Level	C3
Altidude	<=3000m
Cooling System	Fan Cooling
Firefighting	Aerosol/Heptafluoropropane (FM-200)/Perfluoro

International Standard Package

Greensun Lithium Ion Battery Projects for Reference

cabinet lithium battery 100kwh

storage battery for home

If you have any demand for lithium battery products, please contact us in time.

E-mail: info@greensunpv.com

Whatsapp: +86 158 5511 0194
