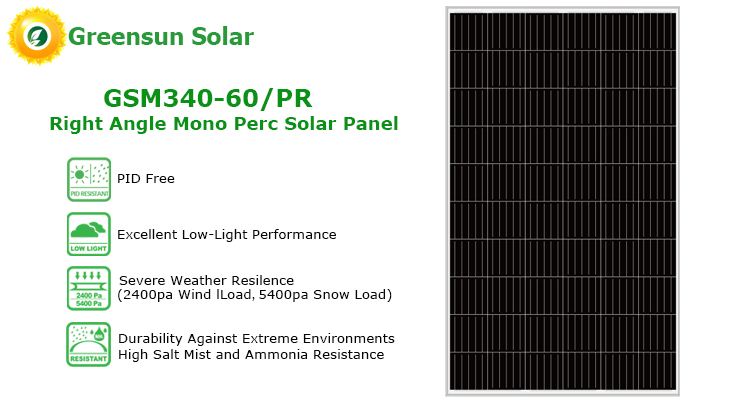

158mm x 158mm Mono Solar Panel 60cells 320watt 330watt 340watt PERC PV Modules

Full square 158MM size 60cells monocrystalline solar panel 320w 330w 340w

  • Brand:

    GREENSUN OR OEM SERVICE

  • Product Origin:

    China

  • Shipping Port:

    Ningbo Or Shanghai

  • Number Of Cells:

    60

  • Solar Cell:

    Mono 158.75*158.75mm

  • Power Ranger:

    320W-340W

  • Size:

    1665x1002x35mm

  • Type:

    Monocrystalline

  • Certification:

    CE/TUV/CSA/CEC/UL

  • Lead Time:

    7days

  • Payment:

    T/T,Credit Card, Paypal, Western Union

  • Warranty:

    25 years
contact now
Product Details

158mm x 158mm Mono Solar Panel 60cells 320watt 330watt 340watt PERC PV Modules


Specification of Full Square Mono 60cells Solar Panel

Mono solar panel 340w 60cells


PV Module
GSM320-60
 GSM330-60
 GSM335-60
 GSM340-60
Rated Maximum Power(Pmax) [W]
 320

330

335
 340
Open Circuit Voltage(Voc) [V]
 41.12
 38.38
 41.62
 41.78
Maximum Power Voltage(Vmp) [V]
 33.96
 34.32
 34.48
 34.67
Short Circuit Current(Isc) [A]
 9.98
 10.23
 10.34
 10.48
Maximum Power Current(Imp) [A]
 9.42
 9.63
 9.72
 9.81
Module Efficiency [%]
 19.18
 19.78
 20.08
 20.38
Power Tolerance
 0~+5W
Temperature Coefficient of Isc(α_Isc)
 +0.058%/℃
Temperature Coefficient of Voc(β_Voc)
 -0.330%/℃
Temperature Coefficient of Pmax(γ_Pmp)
 -0.400%/℃
STC
 Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G
Size
1665*1002*35mm
Weight
18.5kg

Package for Full Square Solar Cells Mono Solar Panel

FULL SQUARE SOLAR PANEL PACKAGE

27units to 30units photovoltaic panel 60CELLS in one wood pallet

14pallets solar panels in a 20ft container

30pallets pv modules in a 40ft HQ container

Customization Package is Feasibility


Projects made by greensun solar

MONO SOLAR PANEL PROJECTS

> High module conversion efficiency up to 20.38% by using high efficient solar cells
and advanced manufacturing technology.

> Low degradation and excellent performance under high temperature and low light
conditions.

>Robust aluminum frame ensures the modules to withstand wind loads up to 2400Pa
and snow loads up to 5400Pa.

>High reliability against extreme environmental conditions (passing salt mist,
ammonia and hail tests).

>Potential induced degradation (PID) resistance.

>Positive power tolerance of 0 ~ +3 %.


On grid solar system connects to grid, self consumption first, excess power can be sold to the grid.

Grid tie solar system mainly consists of solar panels, grid tie inverter, brackets, etc.


Solar power storage system can connect to grid, self consumption first, excess power can be stored in the battery

Hyrid solar system mainly consists of pv modules, hybrid inverter, mounting system, battery,etc.


Stand alone solar system works alone without city power

Off grid solar system mainly consists of solar panels, off grid inverter, charge controller, solar battery, etc


One stop solution for solar power system, solar water pump system.
