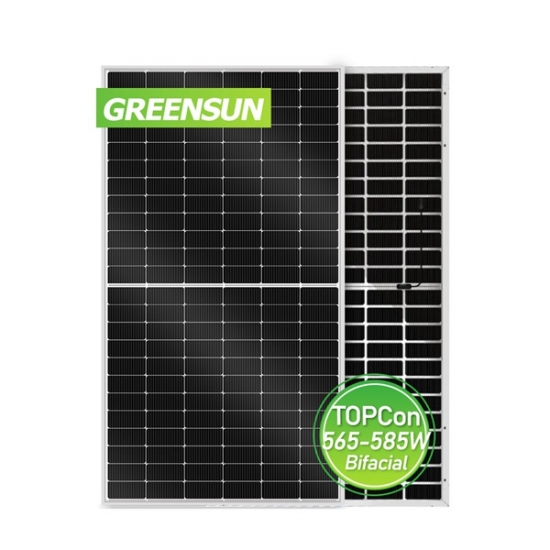

144 Cells TOPCon Monocrystalline 565W 570W 575W 580W 585W N-Type Mono PV Module

N-Type TOPCon Solar Panels

565W - 585W Monocrystalline High Efficiency

Brand:
GREENSUN OR OEM SERVICE
Product Origin:
China
Color:
Full Black/Silver
Shipping Port:
Ningbo Or Shanghai
Number Of Cells:
144cells
Solar Cell:
182mm solar cells
Power Ranger:
565w-585w
Size:
2279mm×1134mm×30mm
Type:
N-type TOPCon
Max Power :
585W
Certification:
IEC/CE/TUV/CSA/CEC/UL
Lead Time:
7days
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
30 years

contact now

Product Details

144 Cells TOPCon Monocrystalline 565W 570W 575W 580W 585W N-Type Mono PV Module

Specification of TOPCon Half Cut Solar Panel Monocrystalline

N-Type TOPCon Bifacial Mono Solar Panels Datasheet

Model	TOPCon 570W	TOPCon 575W	TOPCon 580W	TOPCon 585W
Maximum Power[Pmax]	570W	575W	580W	585W
Maximum Power Voltage(Vmp) [V]	42.29	42.44	42.59	42.74
Open Circuit Voltage [Voc]	51.07	51.27	51.47	51.67
Short Circuit Current(Isc) [A]	14.25	14.31	14.37	14.43
Maximum Power Current(Imp) [A]	13.48	13.55	13.62	14.69
Module Efficiency [%]	22.07%	21.26%	22.45%	22.64%
Power Tolerance	0~+5W
Temperature Coefficient of Isc(α_Isc)	+0.048%/℃
Temperature Coefficient of Voc(β_Voc)	-0.280%/℃
Temperature Coefficient of Pmax(γ_Pmp)	-0.350%/℃
Package	36 units per pallets, 720 units per container

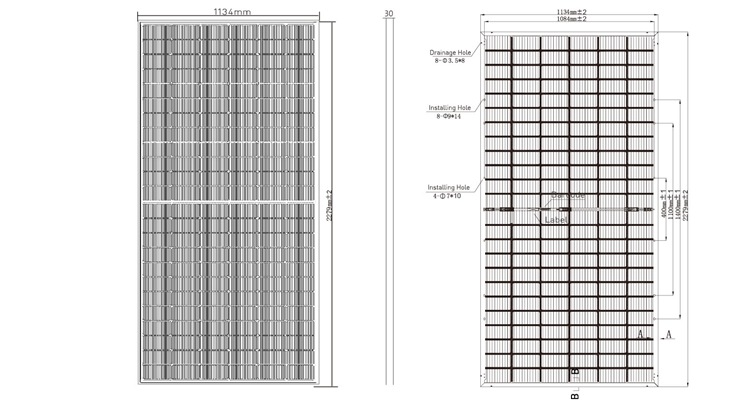

Size	2279113430mm
Weight	32.0kg

More Info of TOPCon Solar Panels

TOPCon technology belongs to N-TYPE solar cells.
Compared with ordinary PERC solar panels, it has the characteristics of longer life, higher efficiency and more advanced technology.
Will become the mainstream product in the market.

Our own TOPCon solar panel has a power range from 420W to 600W, and will further expand the power range of the product.
Product types include single-glass, bifacial double-glass and all-black versions.
At the same time, our business partners include LONGI, RISEN, TRINA, JINKO. . . etc.

OEM service is acceptable.

n-type solar module

TOPCon Technology Solar Panel Advantages

1. High efficiency: The conversion efficiency of Topcon cells is relatively high, up to 23%.
2. Low temperature coefficient: The temperature coefficient of Topcon cells is low, suitable for use in high temperature environments, and the efficiency decay is small.
3. Strong durability: Topcon cells use high-quality materials and manufacturing processes, with a service life of more than 30 years and low maintenance costs.
4. Good spectral response: Topcon cells have good spectral response to different bands and are suitable for various application scenarios.
5. Good transparency: The surface of Topcon cells can achieve high transparency, which is suitable for use in products that require transparency.
6. Low cost: Compared with other types of solar panels, the production cost of TopCon photovoltaic is low.

One stop solution for solar power system.

For more information, please feel free to contact our team
