120cells Half Cut PV Module 350w 360w 370w 380w Solar Panel 9BB Mono

Brand:
GREENSUN OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo Or Shanghai
Number Of Cells:
120cells
Solar Cell:
Mono 166x166mm
Power Ranger:
350w-380w
Size:
1776mm×1052mm×35
Type:
Monocrystalline
Max Power :
380W
Certification:
CE/TUV/CSA/CEC/UL
Lead Time:
7days
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
25 years

contact now

Product Details

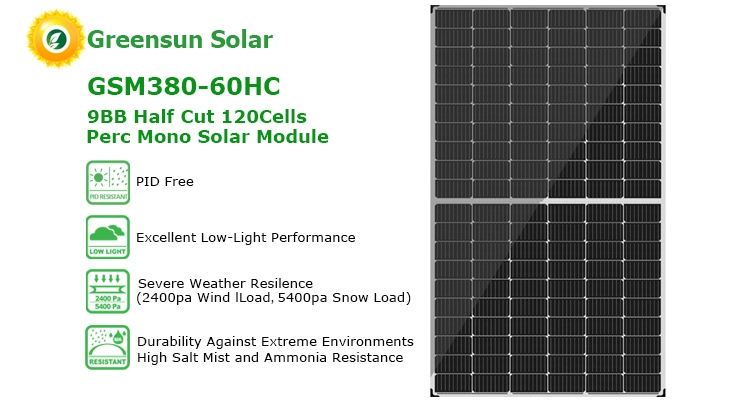

120cells Half Cut PV Module 350w 360w 370w 380w Solar Panel 9BB Mono

Specification of 9BB Half Cut Solar Panel 120cells Monocrystalline

120cells solar panel

PV Module	GSM350-120	GSM360-120	GSM370-120	GSM380-120
Rated Maximum Power(Pmax) [W]	350	360	370	380
Open Circuit Voltage(Voc) [V]	40.5	40.9	41.3	41.7
Maximum Power Voltage(Vmp) [V]	33.3	34.7	36.1	37.5
Short Circuit Current(Isc) [A]	11.02	11.2	11.38	11.56
Maximum Power Current(Imp) [A]	10.52	10.69	10.86	11.03
Module Efficiency [%]	19.0	19.6	20.2	20.6
Power Tolerance	0~+5W
Temperature Coefficient of Isc(α_Isc)	+0.058%/℃
Temperature Coefficient of Voc(β_Voc)	-0.330%/℃
Temperature Coefficient of Pmax(γ_Pmp)	-0.400%/℃
STC	Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G
Size	1776105235mm
Weight	20kg

Production ofHalf-cut Solar Panel

half cut cell solar panel production

Package forHalf-cut Solar Panel

half cell solar panel package

27units to 30unitshalf-cut cells solar panelin one wood pallet

10pallets solar panels in a 20ft container

23pallets pv modules in a 40ft HQ container

Customization Packageis Feasibility

Half-cut Cells Advantages

(1) The solar cell is divided into two, the main gate current is halved, the current loss of the whole component is reduced to 1/4 of the original, and the output power is about 5-10W higher than that of the same type of whole battery assembly.
(2) The hot spot temperature of the half-chip module assembly is lower than the temperature of the same-type full-piece module
assembly by about 25 ° C, which can effectively reduce the hot spot effect of the component.
(3) Half-cut module components meet the 1500V system voltage design requirements, which can reduce the system-side cost by about 10%;
(4) Effectively reduce the loss of power generation caused by occlusion when there is shadow occlusion and ash accumulation or snow accumulation.
(5) Reduce the first year and the average photoinduced attenuation;
(6) 100% PID Free.

On grid solar system connects to grid, self consumption first,excess power can be sold to the grid.

Grid tie solar system mainly consists of solar panels, grid tie inverter, brackets, etc.

Energy Storage Solar System can connect to grid, self consumption first, excess power can be stored in the battery

Hyrid solar system mainly consists of pv modules, hybrid inverter, mounting system, battery,etc.

Stand alone solar system works alone without city power

Off grid solar system mainly consists of solar panels, off grid inverter, charge controller, solar battery, etc

One stop solution for solar power system, solar water pump system.
